data.c File Reference

Implements the sensor subroutine, metadata updater, trigger updater, and parameter updater. More...

#include "data.h"
#include "gps.h"
#include "extern.h"
#include "config.h"

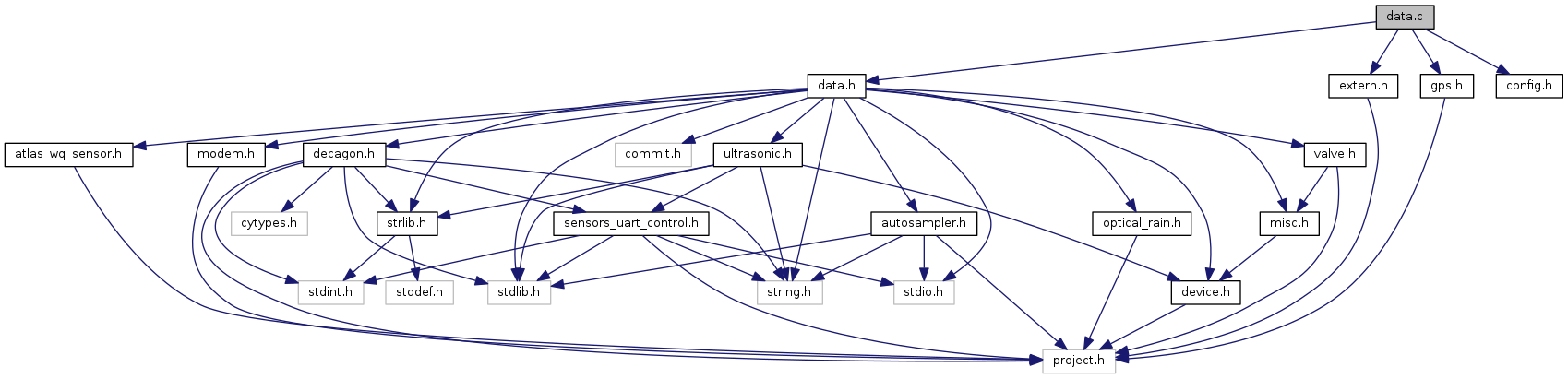

Include dependency graph for data.c:

Functions
int	take_readings (char *labels[], float readings[], uint8 *array_ix, uint8 take_average, uint8 max_size)
	Takes sensor readings and stores results into an array of labels and an array of readings. More...
uint8	execute_triggers (char *labels[], float readings[], uint8 *array_ix, uint8 max_size)
	Executes triggers and stores results into an array of labels and an array of readings. More...
uint8	zip_meta (char *labels[], float readings[], uint8 *array_ix, uint8 max_size)
	Inserts current value of meta_trigger into readings array. More...
uint8	zip_modem (char *labels[], float readings[], uint8 *array_ix, uint8 max_size)
	Inserts current values of connection_attempt_counter rssi and fer into readings array. More...
uint8	send_readings (char *body, char *send_str, char *response_str, char *socket_dial_str, char *labels[], float readings[], uint8 nvars)
	Send readings to influxdb. More...
uint8	run_meta_subroutine (char *meid, char *send_str, char *response_str, uint8 get_device_meid)
	Runs update_meta and stores the results in an array of readings and labels. More...
int	update_meta (char *meid, char *send_str, char *response_str)
	Update values of node_id, node_user, node_pass, node_db on device based on current values stored on server. More...
int	update_triggers (char *body, char *send_str, char *response_str)
	Update values of triggers, such as valve_trigger, autosampler_trigger and gps_trigger based on current values stored on server. More...
void	update_params (char *body, char *send_str, char *response_str)
	Update values of onboard parameters, such as sleeptimer and flags such as ultrasonic_flag or valve_flag. More...
void	construct_route (char *route, char *base, char *user, char *pass, char *database)
	Constructs the route (URL) following the base endpoint. More...
void	construct_default_body (char *data_packet, char *labels[], float readings[], int nvars)
	Parses label and readings arrays into an influxdb line protocol body. More...
uint8	append_tags (char *main_tags, char *appended_label, char *appended_value)
	Append new tags to existing influxdb tags. More...
char *	url_encode (char *str)
	Return a URL-encoded version of the input string. More...

Variables
char	node_id [20] = DEFAULT_NODE_ID
char	user [20] = DEFAULT_HOME_USER
char	pass [50] = DEFAULT_HOME_PASS
char	database [20] = DEFAULT_HOME_DB
char	meta_user [20] = DEFAULT_META_USER
char	meta_pass [50] = DEFAULT_META_PASS
char	meta_database [20] = DEFAULT_META_DB
int	main_port = DEFAULT_HOME_PORT
char	main_host [100] = DEFAULT_HOME_HOST
char	main_tags [200] = DEFAULT_GLOBAL_TAGS
char	write_route [60] = ""
char	main_query [300] = {'\0'}
int	service_flag = 1u
int	sleeptimer = SLEEPTIMER
int	max_conn_attempts = MAX_CONNECTION_ATTEMPTS
uint8	enable_ssl_config = ENABLE_SSL_CONFIG
uint8	enable_ssl_sec_config = ENABLE_SSL_SEC_CONFIG
uint8	ssl_enabled = SSL_ENABLED
int	modem_flag = MODEM_FLAG
int	meta_flag = META_FLAG
int	vbat_flag = VBAT_FLAG
int	gps_flag = GPS_FLAG
int	ultrasonic_flag = ULTRASONIC_FLAG
int	ultrasonic_2_flag = ULTRASONIC_2_FLAG
int	senix_flag = SENIX_FLAG
int	optical_rain_flag = OPTICAL_RAIN_FLAG
int	decagon_flag = DECAGON_FLAG
int	autosampler_flag = AUTOSAMPLER_FLAG
int	valve_flag = VALVE_FLAG
int	valve_2_flag = VALVE_2_FLAG
int	atlas_wq_flag = ATLAS_WQ_FLAG
int	autosampler_trigger = AUTOSAMPLER_TRIGGER
int	valve_trigger = VALVE_TRIGGER
int	valve_2_trigger = VALVE_2_TRIGGER
int	meta_trigger = META_TRIGGER
int	gps_trigger = GPS_TRIGGER
int	vbat_loops = VBAT_LOOPS
int	ultrasonic_loops = ULTRASONIC_LOOPS
int	optical_rain_loops = OPTICAL_RAIN_LOOPS
int	decagon_loops = DECAGON_LOOPS
int	connection_attempt_counter = 0
int	rssi = 0u
int	fer = 0u
uint8	bottle_count = 0
int	valve = 0
uint8	array_ix = 0u

Detailed Description

Implements the sensor subroutine, metadata updater, trigger updater, and parameter updater.

Author

Matt Bartos and Brandon Wong

Version

TODO

Date

2017-06-01

Function Documentation

uint8 append_tags	(	char *	main_tags,
		char *	appended_label,
		char *	appended_value
	)

Append new tags to existing influxdb tags.

Parameters

main_tags	Existing tag string (comma-separated)
appended_label	Tag label to append
appended_value	Tag value to append

Returns

1

void construct_default_body	(	char *	data_packet,
		char *	labels[],
		float	readings[],
		int	nvars
	)

Parses label and readings arrays into an influxdb line protocol body.

Parameters

data_packet	Empty buffer to store POST request body
labels	Buffer to store labels corresponding to each trigger result
readings	Buffer to store trigger results as floating point values
nvars	Number of variables (entries) in the readings array

Returns

null

Here is the caller graph for this function:

void construct_route	(	char *	route,
		char *	base,
		char *	user,
		char *	pass,
		char *	database
	)

Constructs the route (URL) following the base endpoint.

Parameters

route	Empty buffer to store route information
base	Base endpoint
user	Influxdb username
pass	Influxdb password
database	Influxdb database

Returns

null

Here is the caller graph for this function:

uint8 execute_triggers	(	char *	labels[],
		float	readings[],
		uint8 *	array_ix,
		uint8	max_size
	)

Executes triggers and stores results into an array of labels and an array of readings.

Parameters

labels	Array to store labels corresponding to each trigger result
readings	Array to store trigger results as floating point values
array_ix	Array index to label and readings
max_size	Maximum size of label and reading arrays (number of entries)

Returns

(*array_ix) + number of entries filled

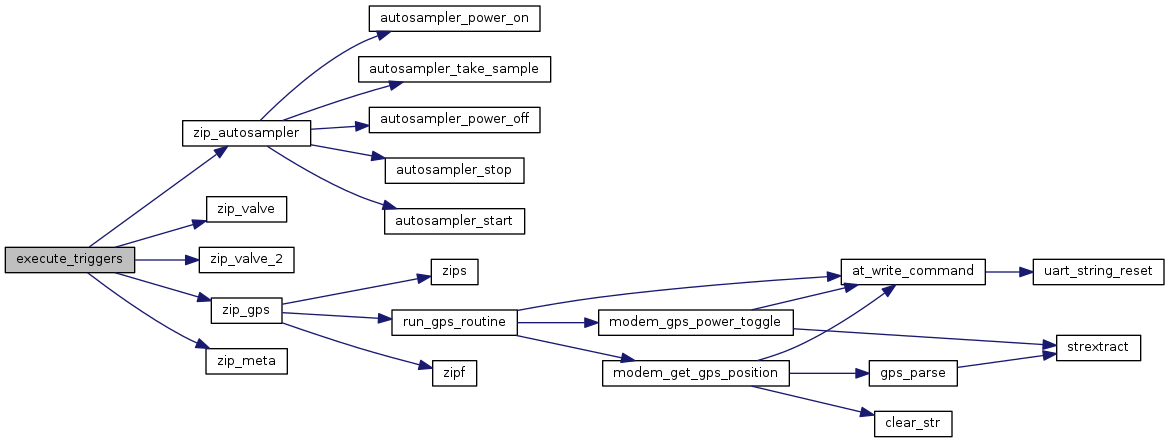

Here is the call graph for this function:

uint8 run_meta_subroutine	(	char *	meid,
		char *	send_str,
		char *	response_str,
		uint8	get_device_meid
	)

Runs update_meta and stores the results in an array of readings and labels.

Parameters

meid	The mobile equipment identificiation number for the cell module
send_str	Empty buffer to place request string
response_str	Empty buffer to store server response
get_device_meid	Whether to re-read meid from cell module. 0: Use current value of meid in memory 1: Read meid from cell module and store in memory

Returns

1 if metadata updated successfully, and 0 otherwise

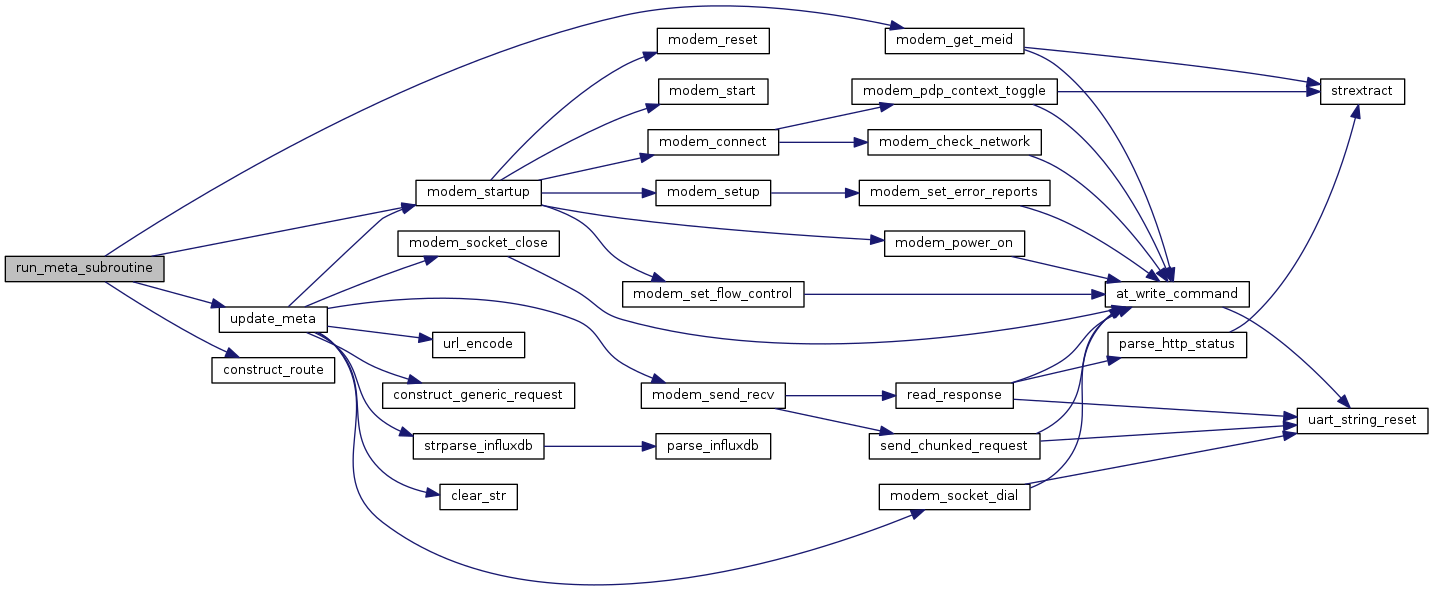

Here is the call graph for this function:

uint8 send_readings	(	char *	body,
		char *	send_str,
		char *	response_str,
		char *	socket_dial_str,
		char *	labels[],
		float	readings[],
		uint8	nvars
	)

Send readings to influxdb.

Parameters

body	Empty buffer to hold message body
send_str	Empty buffer to hold request string
response_str	Empty buffer to hold server response
socket_dial_str	Empty buffer to hold string used in socket dial
labels	Array containing reading labels
readings	Array containing readings as floating point values
nvars	Number of variables (entries) in the readings array

Returns

1 if data transmission was successful, otherwise 0.

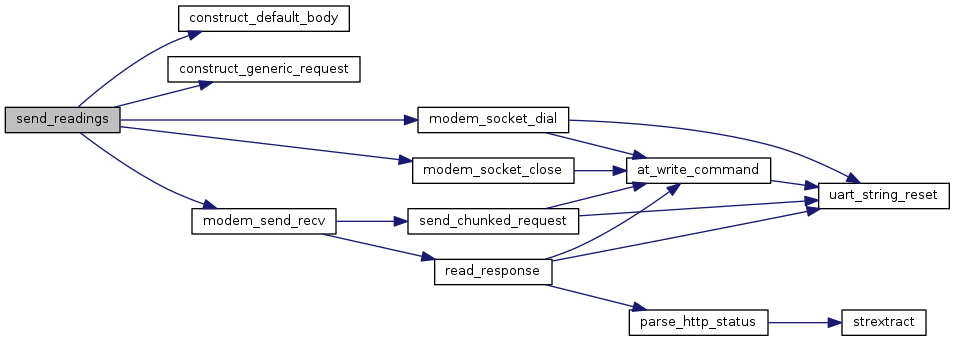

Here is the call graph for this function:

int take_readings	(	char *	labels[],
		float	readings[],
		uint8 *	array_ix,
		uint8	take_average,
		uint8	max_size
	)

Takes sensor readings and stores results into an array of labels and an array of readings.

Parameters

labels	Array to store labels corresponding to each reading
readings	Array to store readings as floating point values
array_ix	Array index to label and readings
take_average	Whether to take average or not 0: Take first valid reading 1: Take average of valid readings
max_size	Maximum size of label and reading arrays (number of entries) in buffer.

Returns

(*array_ix) + number of entries filled

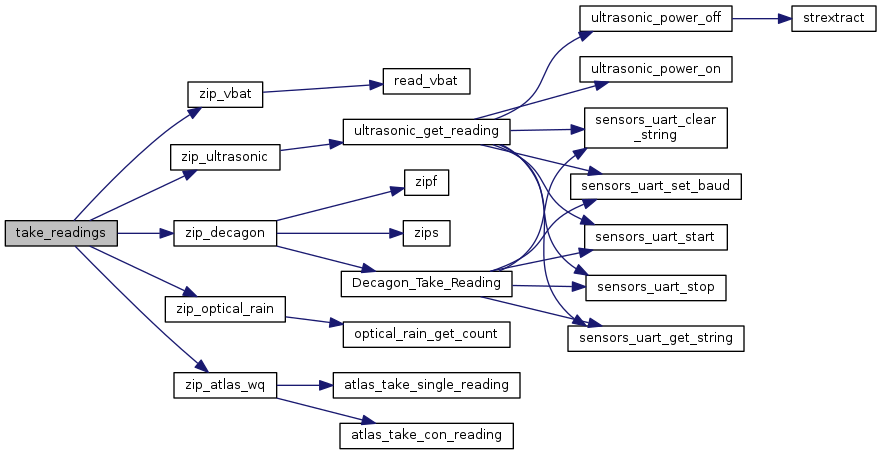

Here is the call graph for this function:

int update_meta	(	char *	meid,
		char *	send_str,
		char *	response_str
	)

Update values of node_id, node_user, node_pass, node_db on device based on current values stored on server.

Parameters

meid	The mobile equipment identificiation number for the cell module
send_str	Empty buffer to place request string
response_str	Empty buffer to store server response
get_device_meid	Whether to re-read meid from cell module. 0: Use current value of meid in memory 1: Read meid from cell module and store in memory

Returns

(response_code - true_response_code). The value of response code is a sum of the following powers of two:

• 1: node_id successfully updated
• 2: user successfully updated
• 4: pass successfully updated
• 8: database successfully updated A response code of 15 indicates that all parameters were successfully updated. The true_reponse_code is 15. Thus, if all parameters are updated successfully, the function will return 0.

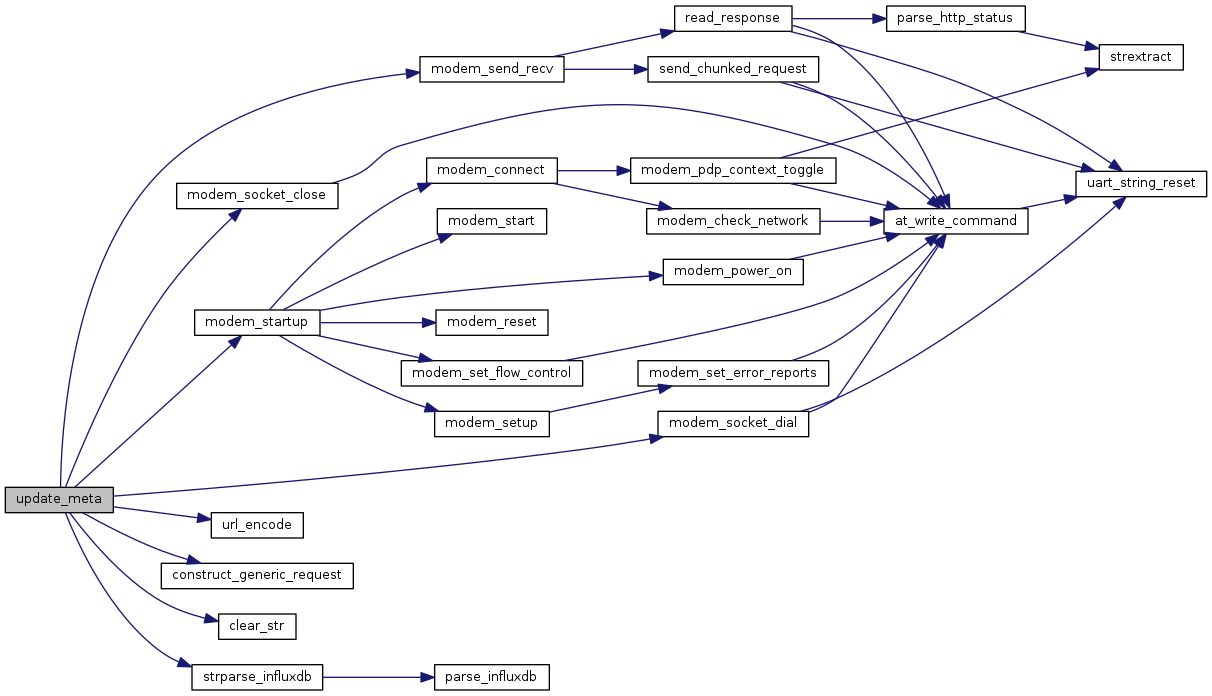

Here is the call graph for this function:

Here is the caller graph for this function:

void update_params	(	char *	body,
		char *	send_str,
		char *	response_str
	)

Update values of onboard parameters, such as sleeptimer and flags such as ultrasonic_flag or valve_flag.

Parameters

body	Empty buffer to store request body
send_str	Empty buffer to store request string
response_str	Empty buffer to store server response

Returns

null

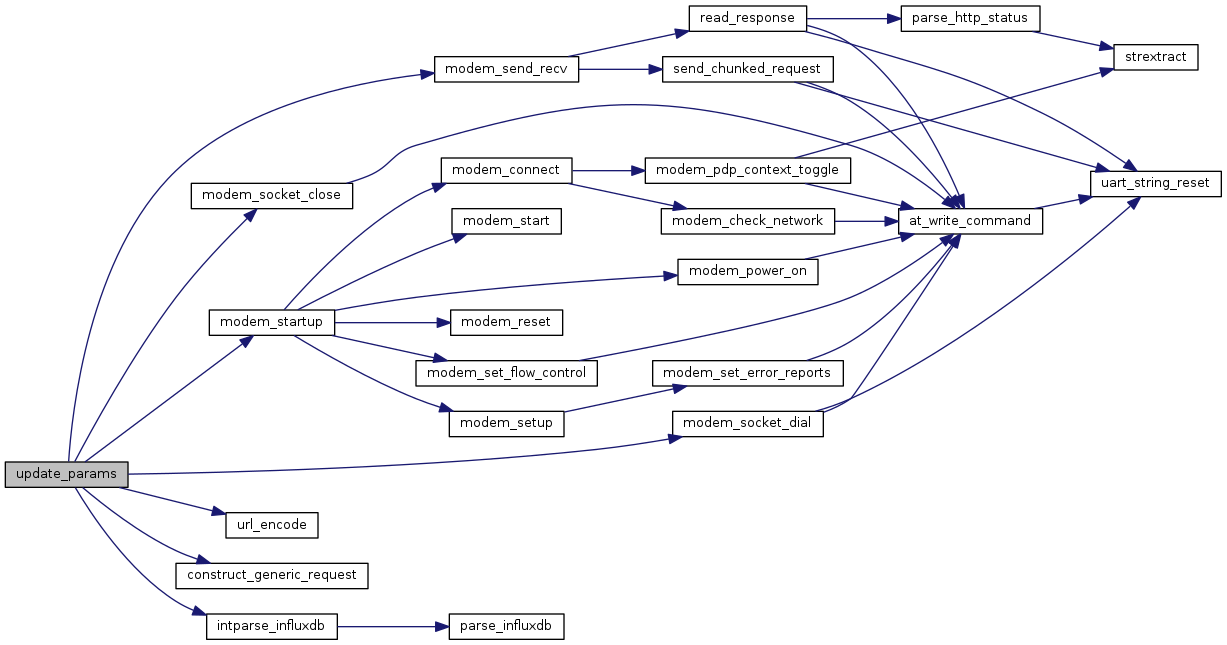

Here is the call graph for this function:

int update_triggers	(	char *	body,
		char *	send_str,
		char *	response_str
	)

Update values of triggers, such as valve_trigger, autosampler_trigger and gps_trigger based on current values stored on server.

Parameters

body	Empty buffer to store request body
send_str	Empty buffer to store request string
response_str	Empty buffer to store server response

Returns

(response_code - true_response_code). The value of response code is a sum of the following powers of two:

• 1: meta_trigger successfully updated
• 2: autosampler_trigger successfully updated
• 4: valve_trigger successfully updated
• 8: valve_2_trigger successfully updated
• 16: gps_trigger successfully updated A response code of 15 indicates that all parameters were successfully updated. The true_reponse_code is 31. Thus, if all parameters are updated successfully, the function will return 0.

Here is the call graph for this function:

char* url_encode

(

char *

str

)

Return a URL-encoded version of the input string.

Parameters

str	String to URL-encode

Returns

URL-encoded string.

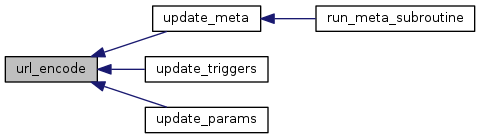

Here is the caller graph for this function:

uint8 zip_meta	(	char *	labels[],
		float	readings[],
		uint8 *	array_ix,
		uint8	max_size
	)

Inserts current value of meta_trigger into readings array.

Parameters

labels	Array to store labels corresponding to each trigger result
readings	Array to store trigger results as floating point values
array_ix	Array index to label and readings
max_size	Maximum size of label and reading arrays (number of entries)

Returns

(*array_ix) + number of entries filled

Here is the caller graph for this function:

uint8 zip_modem	(	char *	labels[],
		float	readings[],
		uint8 *	array_ix,
		uint8	max_size
	)

Inserts current values of connection_attempt_counter rssi and fer into readings array.

Parameters

labels	Array to store labels corresponding to each trigger result
readings	Array to store trigger results as floating point values
array_ix	Array index to label and readings
max_size	Maximum size of label and reading arrays (number of entries)

Returns

(*array_ix) + number of entries filled
