gps.c File Reference

Implements Telit's GPS geolocation functions. More...

#include <device.h>
#include <stdio.h>
#include <string.h>
#include <stdlib.h>
#include "modem.h"
#include "strlib.h"
#include "extern.h"
#include "gps.h"

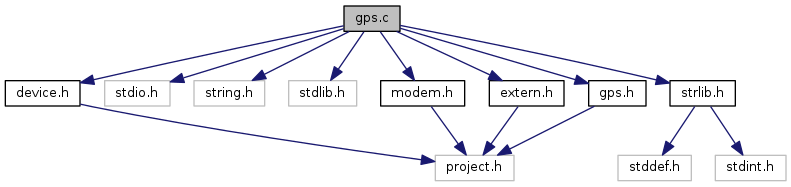

Include dependency graph for gps.c:

Functions
uint8	modem_gps_power_toggle (uint8 gps_power_on)
	Toggle power to the GPS module. More...
uint8	modem_get_gps_position (float *lat, float *lon, float *hdop, float *altitude, uint8 *gps_fix, float *cog, float *spkm, float *spkn, uint8 *nsat, uint8 min_satellites, uint8 max_tries)
	Retrieves the current GPS position by attempting to connect to the GPS network. More...
uint8	run_gps_routine (int *gps_trigger, float *lat, float *lon, float *hdop, float *altitude, uint8 *gps_fix, float *cog, float *spkm, float *spkn, uint8 *nsat, uint8 min_satellites, uint8 max_tries)
	Runs GPS routine to retrieve GPS position. More...
uint8	zip_gps (char *labels[], float readings[], uint8 *array_ix, int *gps_trigger, uint8 min_satellites, uint8 max_tries, uint8 max_size)
	Takes a string array of labels and float array of values and pairs the corresponding values. More...

Detailed Description

Implements Telit's GPS geolocation functions.

Author

Matt Bartos and Ivan Mondragon

Version

TODO

Date

2017-06-01

Function Documentation

uint8 modem_get_gps_position	(	float *	lat,
		float *	lon,
		float *	hdop,
		float *	altitude,
		uint8 *	gps_fix,
		float *	cog,
		float *	spkm,
		float *	spkn,
		uint8 *	nsat,
		uint8	min_satellites,
		uint8	max_tries
	)

Retrieves the current GPS position by attempting to connect to the GPS network.

Parameters

lat	Buffer to store the Latitude.
lon	Buffer to store the Longitude.
hdop	Buffer to store the Horizontal Diluition of Precision.
altitude	Buffer to store the Altitude: mean-sea-level (geoid).
gps_fix	Buffer to store the flag: 0 = Invalid Fix 2 = 2D fix 3 = 3D fix
cog	Buffer to store the Course over ground.
spkm	Buffer to store the Speed over ground (km/hr).
spkn	Buffer to store the Speed over ground (knots).
nsat	Buffer to store the number of satellites in use [0..12]
min_satellites	Minimum number of satellits the module should connect to.
max_tries	Maximum number of attempts.

Returns

1u if the gps module was able to connect to the minimum number of satellites, 0u otherwise.

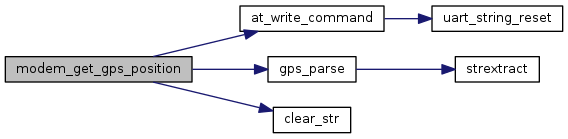

Here is the call graph for this function:

Here is the caller graph for this function:

uint8 modem_gps_power_toggle

(

uint8

gps_power_on

)

Toggle power to the GPS module.

Parameters

gps_power_on

Enable flag: 0 = Power off 1 = Power on

Returns

1u on success, 0u otherwise.

Here is the call graph for this function:

Here is the caller graph for this function:

uint8 run_gps_routine	(	int *	gps_trigger,
		float *	lat,
		float *	lon,
		float *	hdop,
		float *	altitude,
		uint8 *	gps_fix,
		float *	cog,
		float *	spkm,
		float *	spkn,
		uint8 *	nsat,
		uint8	min_satellites,
		uint8	max_tries
	)

Runs GPS routine to retrieve GPS position.

Parameters

gps_trigger	gps_trigger flag.
lat	Buffer to store the Latitude.
lon	Buffer to store the Longitude.
hdop	Buffer to store the Horizontal Diluition of Precision.
altitude	Buffer to store the Altitude: mean-sea-level (geoid).
gps_fix	Buffer to store the flag: 0 = Invalid Fix 2 = 2D fix 3 = 3D fix
cog	Buffer to store the Course over ground.
spkm	Buffer to store the Speed over ground (km/hr).
spkn	Buffer to store the Speed over ground (knots).
nsat	Buffer to store the number of satellites in use [0..12]
min_satellites	Minimum number of satellits the module should connect to.
max_tries	Maximum number of attempts.

Returns

1u if the gps module was able to connect to the minimum number of satellites, 0u otherwise.

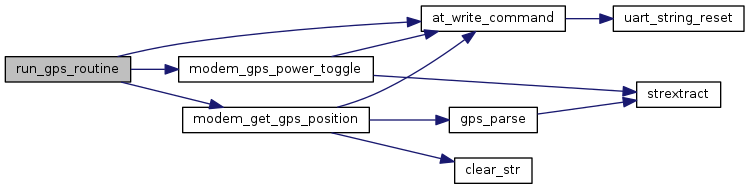

Here is the call graph for this function:

Here is the caller graph for this function:

uint8 zip_gps	(	char *	labels[],
		float	readings[],
		uint8 *	array_ix,
		int *	gps_trigger,
		uint8	min_satellites,
		uint8	max_tries,
		uint8	max_size
	)

Takes a string array of labels and float array of values and pairs the corresponding values.

Parameters

labels[]	Array to store the labels.
readings[]	Array to store the corresponding values.
array_ix	Current array index.
gps_trigger	GPS trigger.
min_satellites	Minimum number of satellits the module should connect to.
max_tries	Maximum number of attempts.
max_size	Max size of the labels and readings arrays.

Returns

(*array_ix) + 10

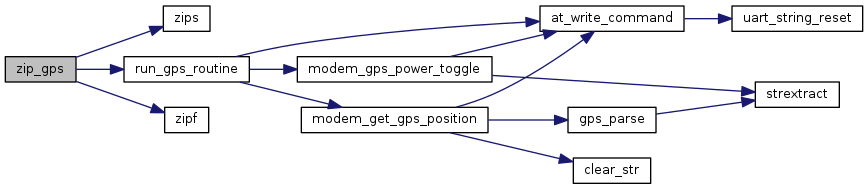

Here is the call graph for this function:

Here is the caller graph for this function:
