ssl.c File Reference

Implements functions for configuring SSL/TLS. More...

#include <device.h>
#include <stdio.h>
#include <string.h>
#include <stdlib.h>
#include "modem.h"
#include "strlib.h"
#include "extern.h"
#include "ssl.h"

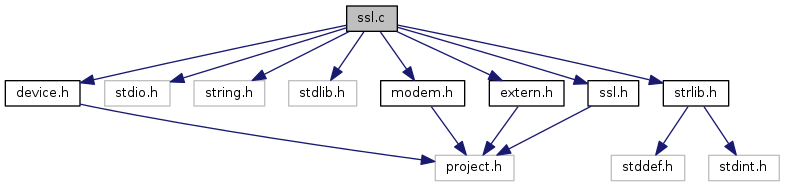

Include dependency graph for ssl.c:

Functions
uint8	modem_ssl_toggle (int enable_ssl)
	Toggle SSL Socket. More...
uint8	modem_ssl_sec_data (uint8 ssid, uint8 action, uint8 datatype, char *cert, char *output_str)
	Stores the security data (certificate(s) and/or private key) into the module’s NVM. More...
uint8	modem_ssl_sec_config (uint8 ssid, uint8 cipher_suite, uint8 auth_mode, uint8 cert_format)
	configure the communication channel according to the user’s security architecture. More...
uint8	modem_ssl_config (uint8 ssid, uint8 cid, int packet_size, int max_to, int def_to, int tx_to, uint8 ssl_ring_mode)
	Before opening the SSL socket, several parameters can be configured via this command: More...
uint8	ssl_init (uint8 edit_ssl_sec_config, uint8 edit_ssl_config)
	Initialize SSL features. More...

Variables
char	client_cert [] = CLIENT_CERT
char	private_key [] = PRIVATE_KEY
char	server_cert [] = SERVER_CERT
uint8	ssid = 1
uint8	cipher_suite = 0
uint8	auth_mode = 1
uint8	cert_format = 1
uint8	cid = 1u
uint	packet_size = 1000u
uint	max_to = 90u
uint	def_to = 100u
uint	tx_to = 50u
uint8	ssl_ring_mode = 1u

Detailed Description

Implements functions for configuring SSL/TLS.

Author

Matt Bartos and Ivan Mondragon

Version

TODO

Date

2017-06-01

Function Documentation

uint8 modem_ssl_config	(	uint8	ssid,
		uint8	cid,
		int	packet_size,
		int	max_to,
		int	def_to,
		int	tx_to,
		uint8	ssl_ring_mode
	)

Before opening the SSL socket, several parameters can be configured via this command:

Parameters

ssid	Must be set to 1. It is the only Secure Socket ID available.
cid	The PDP Context Identifier, it's value must be set to 1.
packet_size	Is the size of the packet used by the SSL/TCP/IP stack for data sending in online mode. Small <pktSize> values introduce a higher communication overhead.
max_to	Is the socket inactivity timeout. In online mode: if there’s no data exchange within this timeout period the connection is closed. Increment it if it is needed a longer idle time period.
def_to	Timeout value used as default value by other SSL commands whenever their Timeout parameters are not set.
tx_to	Is the time period after which data is sent even if <pktSize> is not reached (only in online mode). The parameter value must be tuned with user’s application requirements. Small <txTo> values introduce a higher communication overhead.
ssl_ring_mode	Is the presentation mode of the SSLSRING unsolicited indication, which informs the user about new incoming data that can be read in command mode. It can be disabled using value 0.

Returns

1u on success, 0u otherwise.

Here is the call graph for this function:

Here is the caller graph for this function:

uint8 modem_ssl_sec_config	(	uint8	ssid,
		uint8	cipher_suite,
		uint8	auth_mode,
		uint8	cert_format
	)

configure the communication channel according to the user’s security architecture.

Parameters

ssid	Must be set to 1. It is the only Secure Socket ID available
cipher_suite	Setting the value 0 all the available cipher suites are proposed to the server. It is responsibility of the remote server to select one of them: 0 = TLS_RSA_WITH_RC4_128_MD5 + TLS_RSA_WITH_RC4_128_SHA + TLS_RSA_WITH_AES_256_CBC_SHA 1 = TLS_RSA_WITH_RC4_128_MD5 2 = TLS_RSA_WITH_RC4_128_SHA 3 = TLS_RSA_WITH_AES_256_CBC_SHA Warning - the product series HE920 / UE910 V2/ DE910 do not support TLS_RSA_WITH_NULL_SHA and TLS_RSA_WITH_AES_256_CBC_SHA.
auth_mode	Is the authentication mode: 0 = SSL verify none: no authentication, no security data is needed at all 1 = Server authentication mode: CA Certificate storage is needed (the most common case) 2 = Server/Client authentication mode: CA Certificate (server), Certificate (client) and Private Key (client) are needed
cert_format	Is an optional parameter. It selects the format of the certificate to be stored via #SSLSECDATA command. 0 = DER format 1 = PEM format

Returns

1u on success, 0u otherwise.

Here is the call graph for this function:

Here is the caller graph for this function:

uint8 modem_ssl_sec_data	(	uint8	ssid,
		uint8	action,
		uint8	datatype,
		char *	cert,
		char *	output_str
	)

Stores the security data (certificate(s) and/or private key) into the module’s NVM.

Parameters

ssid	Must be set to 1. It is the only Secure Socket ID available.
action	The action to be performed: 0 = deleting 1 = writing 2 = reading
datatype	identifies the certificate/key to be stored or read: 0 = Certificate of the client (module). It is needed when the Server/Client authentication mode has been configured. 1 = CA Certificate of the remote server, it is used to authenticate the remote server. It is needed when <auth_mode> parameter of the #SSLSECCFG command is set to 1 or 2. 2 = RSA private key of the client (module). It is needed if the Server/Client authentication mode has been configured.
cert	The certificate to be written to the modem.
output_str	The buffer to write the current state of the modem. ONLY USED WHEN ACTION IS READ MODE.

Returns

1u on success, 0u otherwise.

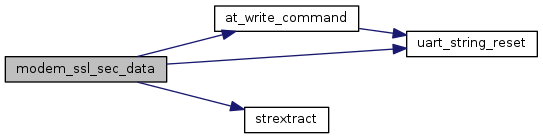

Here is the call graph for this function:

Here is the caller graph for this function:

uint8 modem_ssl_toggle

(

int

enable_ssl

)

Toggle SSL Socket.

Parameters

enable_ssl

enable flag: 0 = Disabled 1 = Enabled

Returns

1u on success, 0u otherwise.

Here is the call graph for this function:

Here is the caller graph for this function:

uint8 ssl_init	(	uint8	edit_ssl_sec_config,
		uint8	edit_ssl_config
	)

Initialize SSL features.

Parameters

edit_ssl_sec_config	Enable flag: edit SSL security settings (SSLSECCFG) if desired.
edit_ssl_config	Enable flag: edit general SSL configuration (SSLCFG) if desired.

Returns

1u on success, 0u otherwise.

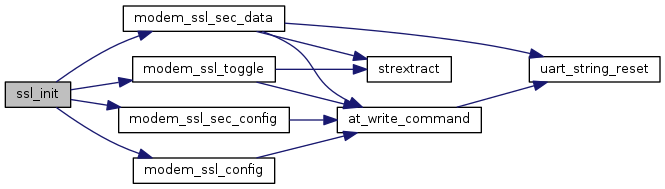

Here is the call graph for this function:

Here is the caller graph for this function:
