Declares the sensor subroutine, metadata updater, trigger updater, and parameter updater. More...

#include <device.h>
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include "decagon.h"
#include "ultrasonic.h"
#include "optical_rain.h"
#include "atlas_wq_sensor.h"
#include "autosampler.h"
#include "valve.h"
#include "misc.h"
#include "modem.h"
#include "strlib.h"
#include "commit.h"

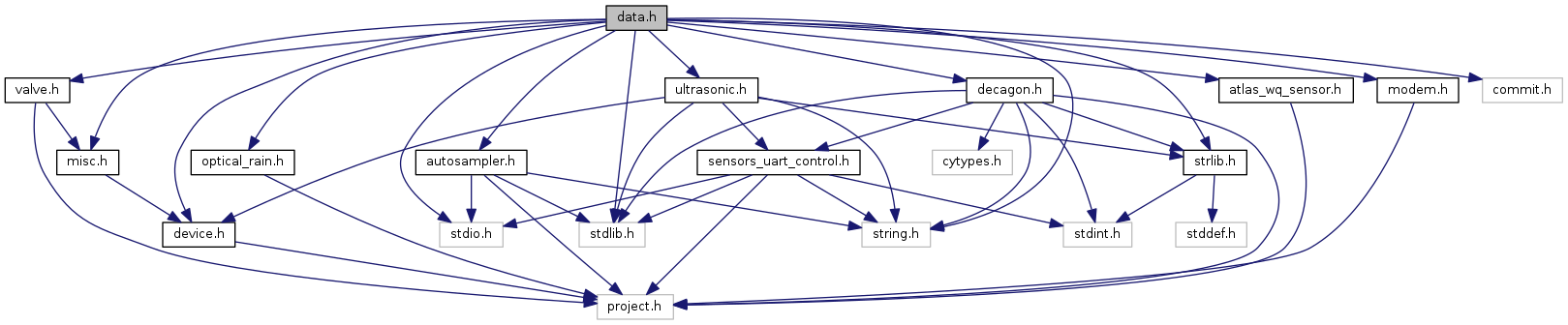

Include dependency graph for data.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
int	take_readings (char labels[], float readings[], uint8 array_ix, uint8 take_average, uint8 max_size)
	Takes sensor readings and stores results into an array of labels and an array of readings. More...

uint8	execute_triggers (char labels[], float readings[], uint8 array_ix, uint8 max_size)
	Executes triggers and stores results into an array of labels and an array of readings. More...

uint8	zip_meta (char labels[], float readings[], uint8 array_ix, uint8 max_size)
	Inserts current value of `meta_trigger` into readings array. More...

uint8	zip_modem (char labels[], float readings[], uint8 array_ix, uint8 max_size)
	Inserts current values of `connection_attempt_counter` `rssi` and `fer` into readings array. More...

uint8	run_meta_subroutine (char meid, char send_str, char *response_str, uint8 get_device_meid)
	Runs `update_meta` and stores the results in an array of readings and labels. More...

int	update_meta (char meid, char send_str, char *response_str)
	Update values of `node_id`, `node_user`, `node_pass`, `node_db` on device based on current values stored on server. More...

int	update_triggers (char body, char send_str, char *response_str)
	Update values of triggers, such as `valve_trigger`, `autosampler_trigger` and `gps_trigger` based on current values stored on server. More...

void	update_params (char body, char send_str, char *response_str)
	Update values of onboard parameters, such as `sleeptimer` and flags such as `ultrasonic_flag` or `valve_flag`. More...

void	construct_route (char route, char base, char user, char pass, char *database)
	Constructs the route (URL) following the base endpoint. More...

void	construct_default_body (char data_packet, char labels[], float readings[], int nvars)
	Parses label and readings arrays into an influxdb line protocol body. More...

uint8	send_readings (char body, char send_str, char response_str, char socket_dial_str, char *labels[], float readings[], uint8 nvars)
	Send readings to influxdb. More...

uint8	append_tags (char main_tags, char appended_label, char *appended_value)
	Append new tags to existing influxdb tags. More...

char *	url_encode (char *str)
	Return a URL-encoded version of the input string. More...

Detailed Description

Declares the sensor subroutine, metadata updater, trigger updater, and parameter updater.

Author: Matt Bartos and Brandon Wong

Version: TODO

Date: 2017-06-19

Function Documentation

uint8 append_tags	(	char *	main_tags,
		char *	appended_label,
		char *	appended_value
	)

Append new tags to existing influxdb tags.

Parameters

main_tags	Existing tag string (comma-separated)
appended_label	Tag label to append
appended_value	Tag value to append

Returns: 1

void construct_default_body	(	char *	data_packet,
		char *	labels[],
		float	readings[],
		int	nvars
	)

Parses label and readings arrays into an influxdb line protocol body.

Parameters

data_packet	Empty buffer to store POST request body
labels	Buffer to store labels corresponding to each trigger result
readings	Buffer to store trigger results as floating point values
nvars	Number of variables (entries) in the readings array

Returns: null

Here is the caller graph for this function:

void construct_route	(	char *	route,
		char *	base,
		char *	user,
		char *	pass,
		char *	database
	)

Constructs the route (URL) following the base endpoint.

Parameters

route	Empty buffer to store route information
base	Base endpoint
user	Influxdb username
pass	Influxdb password
database	Influxdb database

Returns: null

Here is the caller graph for this function:

uint8 execute_triggers	(	char *	labels[],
		float	readings[],
		uint8 *	array_ix,
		uint8	max_size
	)

Executes triggers and stores results into an array of labels and an array of readings.

Parameters

labels	Array to store labels corresponding to each trigger result
readings	Array to store trigger results as floating point values
array_ix	Array index to label and readings
max_size	Maximum size of label and reading arrays (number of entries)

Returns: (*array_ix) + number of entries filled

Here is the call graph for this function:

uint8 run_meta_subroutine	(	char *	meid,
		char *	send_str,
		char *	response_str,
		uint8	get_device_meid
	)

Runs update_meta and stores the results in an array of readings and labels.

Parameters

meid	The mobile equipment identificiation number for the cell module
send_str	Empty buffer to place request string
response_str	Empty buffer to store server response
get_device_meid	Whether to re-read meid from cell module. 0: Use current value of meid in memory 1: Read meid from cell module and store in memory

Returns: 1 if metadata updated successfully, and 0 otherwise

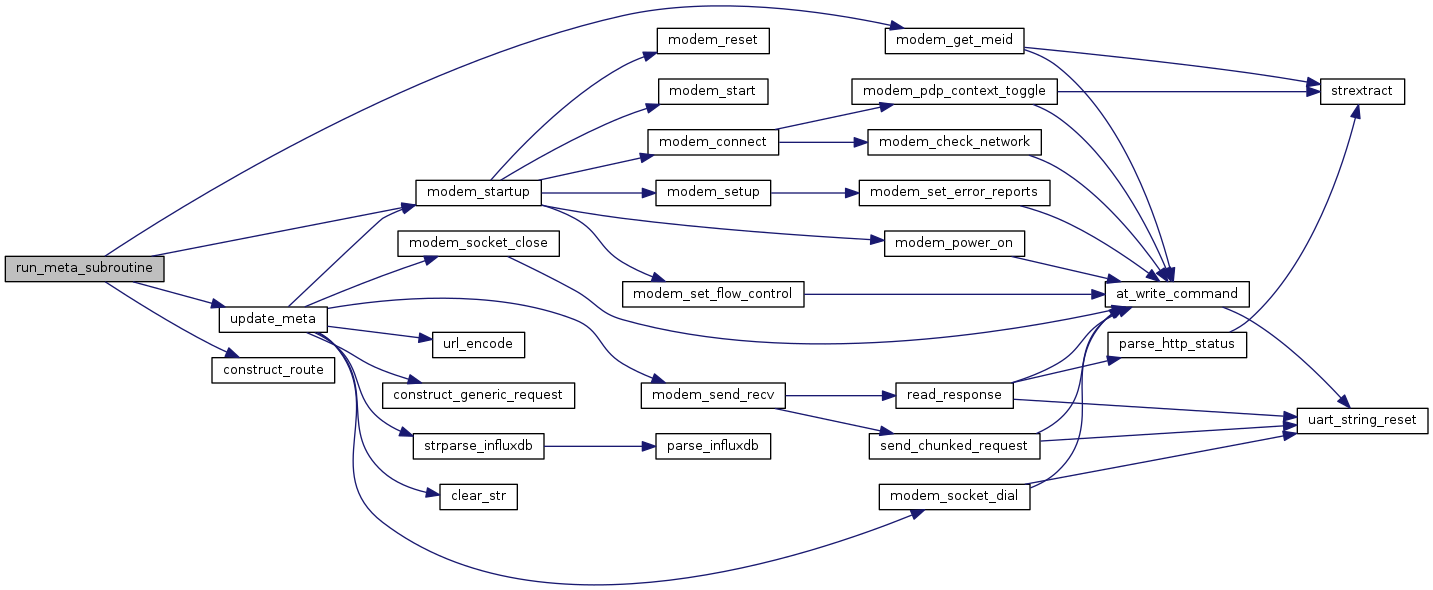

Here is the call graph for this function:

uint8 send_readings	(	char *	body,
		char *	send_str,
		char *	response_str,
		char *	socket_dial_str,
		char *	labels[],
		float	readings[],
		uint8	nvars
	)

Send readings to influxdb.

Parameters

body	Empty buffer to hold message body
send_str	Empty buffer to hold request string
response_str	Empty buffer to hold server response
socket_dial_str	Empty buffer to hold string used in socket dial
labels	Array containing reading labels
readings	Array containing readings as floating point values
nvars	Number of variables (entries) in the readings array

Returns: 1 if data transmission was successful, otherwise 0.

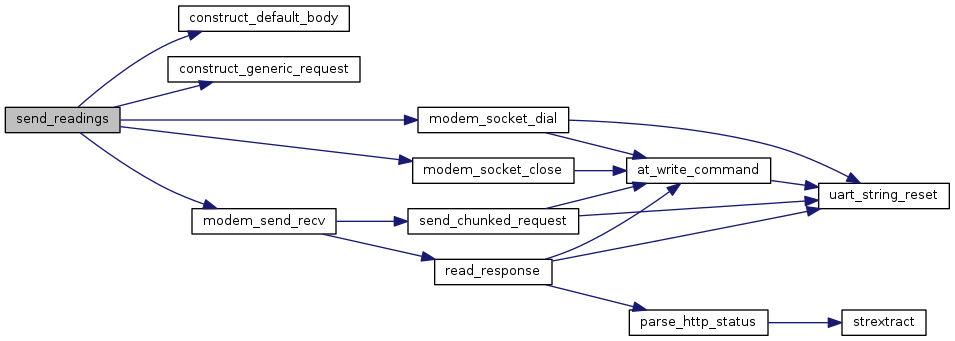

Here is the call graph for this function:

int take_readings	(	char *	labels[],
		float	readings[],
		uint8 *	array_ix,
		uint8	take_average,
		uint8	max_size
	)

Takes sensor readings and stores results into an array of labels and an array of readings.

Parameters

labels	Array to store labels corresponding to each reading
readings	Array to store readings as floating point values
array_ix	Array index to label and readings
take_average	Whether to take average or not 0: Take first valid reading 1: Take average of valid readings
max_size	Maximum size of label and reading arrays (number of entries) in buffer.

Returns: (*array_ix) + number of entries filled

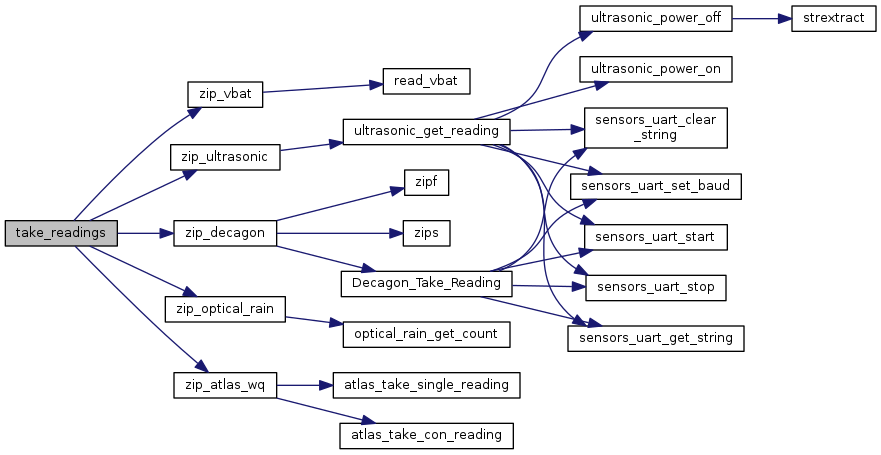

Here is the call graph for this function:

int update_meta	(	char *	meid,
		char *	send_str,
		char *	response_str
	)

Update values of node_id, node_user, node_pass, node_db on device based on current values stored on server.

Parameters

meid	The mobile equipment identificiation number for the cell module
send_str	Empty buffer to place request string
response_str	Empty buffer to store server response
get_device_meid	Whether to re-read meid from cell module. 0: Use current value of meid in memory 1: Read meid from cell module and store in memory

Returns

(response_code - true_response_code). The value of response code is a sum of the following powers of two:

1: node_id successfully updated
2: user successfully updated
4: pass successfully updated
8: database successfully updated A response code of 15 indicates that all parameters were successfully updated. The true_reponse_code is 15. Thus, if all parameters are updated successfully, the function will return 0.

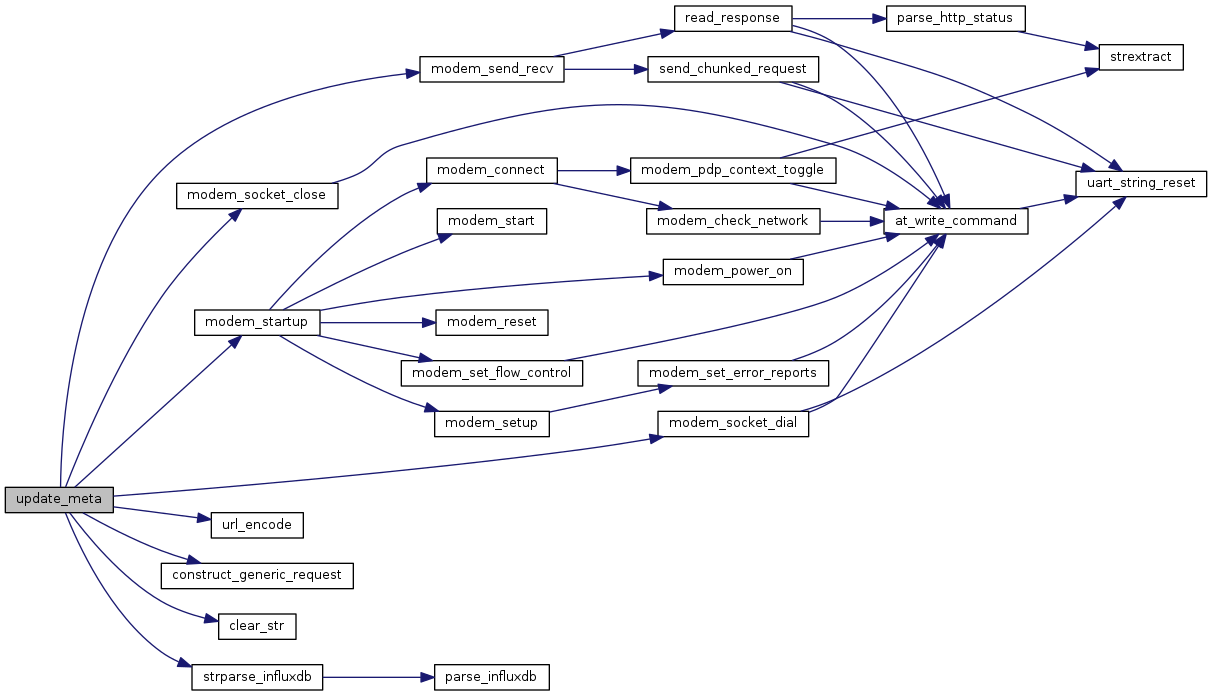

Here is the call graph for this function:

Here is the caller graph for this function:

void update_params	(	char *	body,
		char *	send_str,
		char *	response_str
	)

Update values of onboard parameters, such as sleeptimer and flags such as ultrasonic_flag or valve_flag.

Parameters

body	Empty buffer to store request body
send_str	Empty buffer to store request string
response_str	Empty buffer to store server response

Returns: null

Here is the call graph for this function:

int update_triggers	(	char *	body,
		char *	send_str,
		char *	response_str
	)

Update values of triggers, such as valve_trigger, autosampler_trigger and gps_trigger based on current values stored on server.

Parameters

body	Empty buffer to store request body
send_str	Empty buffer to store request string
response_str	Empty buffer to store server response

Returns

(response_code - true_response_code). The value of response code is a sum of the following powers of two:

1: meta_trigger successfully updated
2: autosampler_trigger successfully updated
4: valve_trigger successfully updated
8: valve_2_trigger successfully updated
16: gps_trigger successfully updated A response code of 15 indicates that all parameters were successfully updated. The true_reponse_code is 31. Thus, if all parameters are updated successfully, the function will return 0.

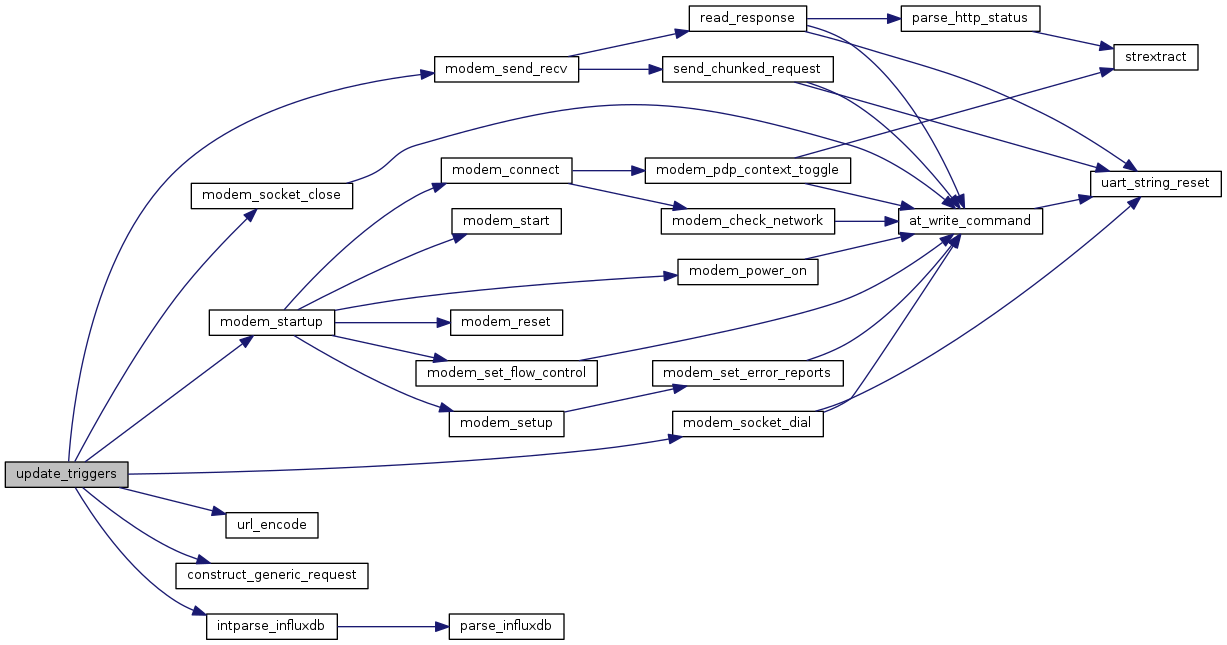

Here is the call graph for this function:

char* url_encode ( char * str )

Return a URL-encoded version of the input string.

Parameters

str	String to URL-encode

Returns: URL-encoded string.

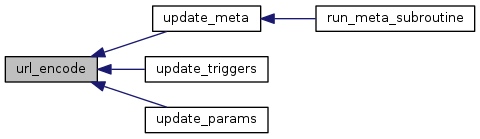

Here is the caller graph for this function:

uint8 zip_meta	(	char *	labels[],
		float	readings[],
		uint8 *	array_ix,
		uint8	max_size
	)

Inserts current value of meta_trigger into readings array.

Parameters

labels	Array to store labels corresponding to each trigger result
readings	Array to store trigger results as floating point values
array_ix	Array index to label and readings
max_size	Maximum size of label and reading arrays (number of entries)

Returns: (*array_ix) + number of entries filled

Here is the caller graph for this function:

uint8 zip_modem	(	char *	labels[],
		float	readings[],
		uint8 *	array_ix,
		uint8	max_size
	)

Inserts current values of connection_attempt_counter rssi and fer into readings array.

Parameters

labels	Array to store labels corresponding to each trigger result
readings	Array to store trigger results as floating point values
array_ix	Array index to label and readings
max_size	Maximum size of label and reading arrays (number of entries)

Returns: (*array_ix) + number of entries filled
