ultrasonic.h File Reference

Implements functions for maxbotix ultrasonic sensors and senix toughsonic sensors subroutines. More...

#include <device.h>
#include <stdlib.h>
#include <string.h>
#include "sensors_uart_control.h"
#include "strlib.h"

Include dependency graph for ultrasonic.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	UltrasonicReading
	Type definition for maxbotix depth sensor struct. More...

Functions
uint8	ultrasonic_power_on (uint8 which_ultrasonic)
	Powers on the ultrasonic sensor. More...
uint8	ultrasonic_power_off (uint8 which_ultrasonic)
	Powers off the ultrasonic sensor. More...
uint8	ultrasonic_get_reading (UltrasonicReading *reading, uint8_t which_ultrasonic)
	Takes a reading with the ultrasonic sensor selected by which_ultrasonic. More...
uint8	zip_ultrasonic (char *labels[], float readings[], uint8 *array_ix, uint8 which_ultrasonic, uint8 take_average, int ultrasonic_loops, uint8 max_size)
	Inserts current values of ultrasonic_reading into labels and readings arrays. More...

Detailed Description

Implements functions for maxbotix ultrasonic sensors and senix toughsonic sensors subroutines.

Author

Brandon Wong, Matt Bartos, Ivan Mondragon, Alec Beljanski

Version

TODO

Date

2017-06-19

Function Documentation

uint8 ultrasonic_get_reading	(	UltrasonicReading *	reading,
		uint8_t	which_ultrasonic
	)

Takes a reading with the ultrasonic sensor selected by which_ultrasonic.

Parameters

reading	Structure to store results into. Depth in millimeters.
which_ultrasonic	Which ultrasonic sensor to use to take reading: 0: First ultrasonic sensor 1: Second ultrasonic sensor 2: Senix toughsonic sensor

Returns

1 on success, 0 otherwise.

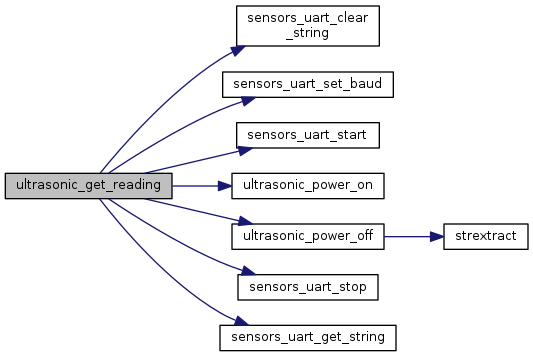

Here is the call graph for this function:

Here is the caller graph for this function:

uint8 ultrasonic_power_off

(

uint8

which_ultrasonic

)

Powers off the ultrasonic sensor.

Parameters

which_ultrasonic

Which ultrasonic sensor to power off: 0: First ultrasonic sensor 1: Second ultrasonic sensor 2: Senix toughsonic sensor

Returns

0 on success

Here is the call graph for this function:

Here is the caller graph for this function:

uint8 ultrasonic_power_on

(

uint8

which_ultrasonic

)

Powers on the ultrasonic sensor.

Parameters

which_ultrasonic

Which ultrasonic sensor to power on: 0: First ultrasonic sensor 1: Second ultrasonic sensor 2: Senix toughsonic sensor

Returns

1 on success

Here is the caller graph for this function:

uint8 zip_ultrasonic	(	char *	labels[],
		float	readings[],
		uint8 *	array_ix,
		uint8	which_ultrasonic,
		uint8	take_average,
		int	ultrasonic_loops,
		uint8	max_size
	)

Inserts current values of ultrasonic_reading into labels and readings arrays.

Parameters

labels	Array to store labels corresponding to each sensor reading
readings	Array to store sensor readings as floating point values
array_ix	Array index to label and readings
which_ultrasonic	Which ultrasonic to take reading with: 0: First ultrasonic sensor 1: Second ultrasonic sensor 2: Senix toughsonic sensor
take_average	Whether to take average or not 0: Take first valid reading 1: Take average of valid readings
ultrasonic_loops	Number of readings taken on each call.
max_size	Maximum size of label and reading arrays (number of entries)

Returns

(*array_ix) + number of entries filled

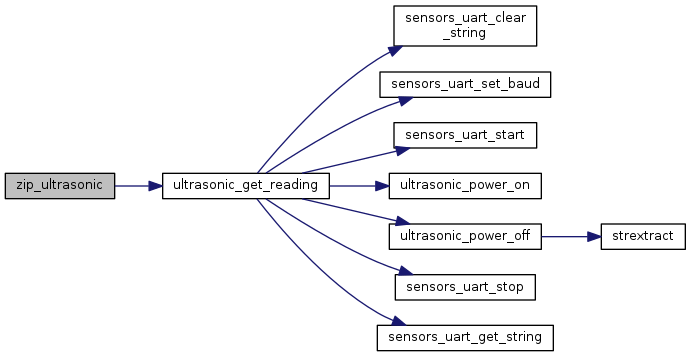

Here is the call graph for this function:

Here is the caller graph for this function:
